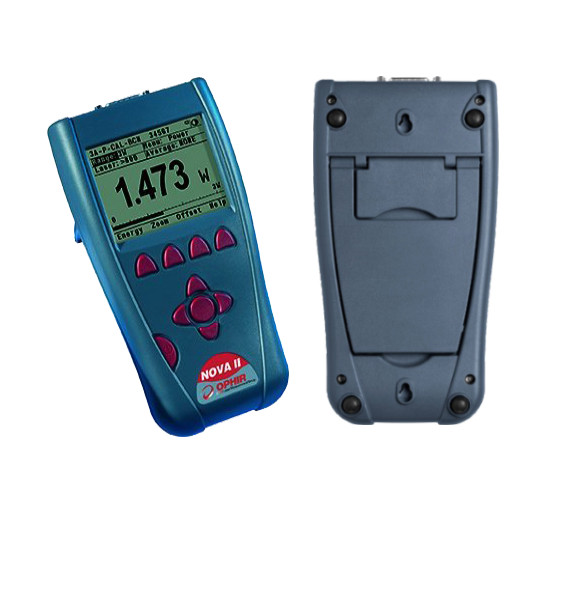

Power Meter

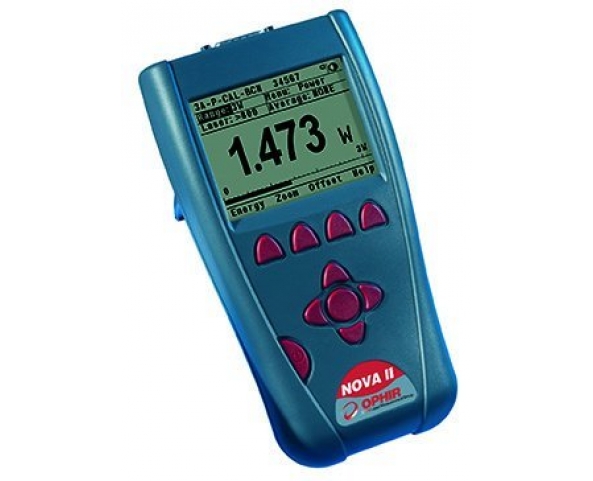

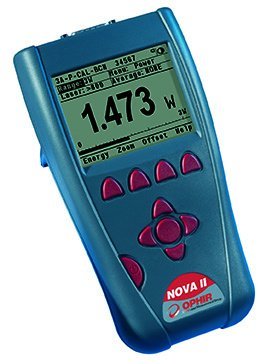

High legibility 320 x 240 pixels graphics LCD with switchable electroluminescent backlight. Large 18mm digits. High resolution analog needle also can be chosen.

Features

Many screen features including power with bar graph, energy, average, exposure, frequency, graphs, scaling, special units, and more. Complete on line context sensitive help screens.

Outputs

USB, RS232 and 1, 2, 5 and 10 volt full scale analog output.

Screen Refresh

15 times/sec

Case

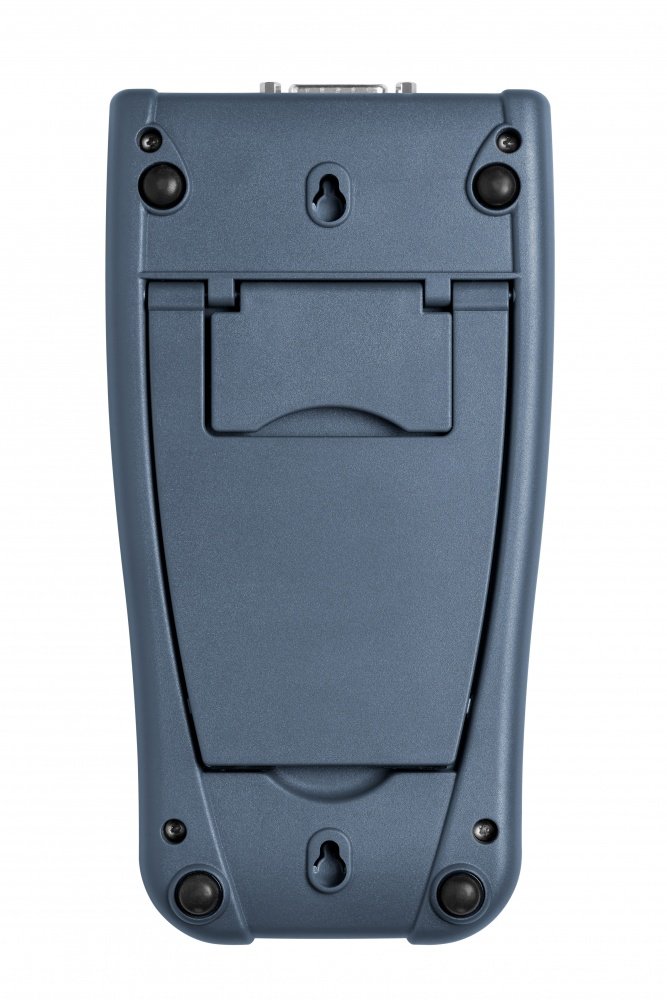

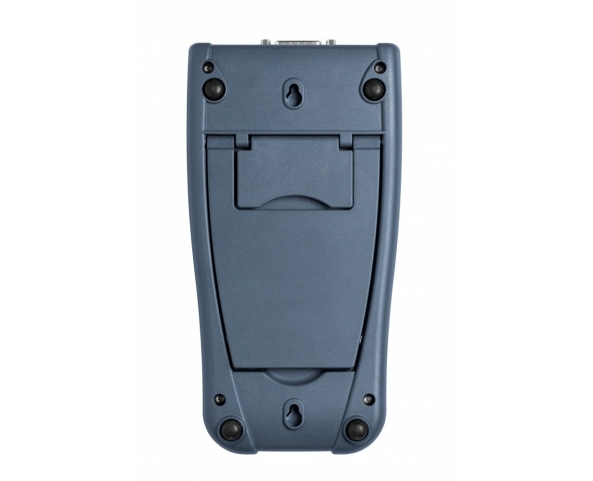

Molded high impact plastic with two level kickstand.

Size

Folds to a compact 208mm L x 110mm W x 43mm H

Battery

Rechargeable NiMH batteries with typically 18 hours between charges. The charger can be ordered from your local distributor. The charger also functions as an AC adapter

Data Handling

Data can be viewed on board or transmitted to PC:

On Board: Non-volatile storage of up to 54000 data points in up to 10 files.

Max onboard data logging rate 4000 ^(a) points/s and Max data logging rate to the PC 2000 ^(a) points/s.

Sensor Features

Works with Thermopile, BeamTrack, Pyroelectric (PE-C series) and Photodiode sensors ^(b).

Program Features

Preferred startup configuration can be set by user. User can recalibrate power, energy, response time and zero offset.

Compliance

CE, UKCA, China RoHS

Notes: (a) The above refers to the rate of logging every single point in turbo mode. Above that rate, the instrument will sample points but not log every single point

Notes: (b) Not including PD300RM sensors
