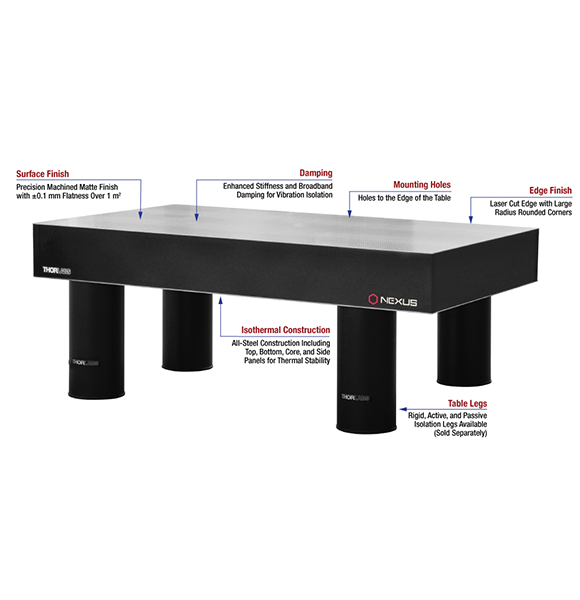

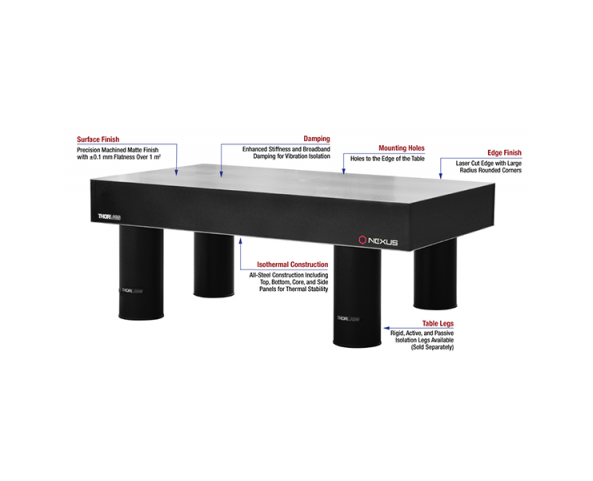

Construction

Table Thickness

210 mm (8.3") or 310 mm (12.2")

Flatness of Top Skin

±0.1 mm (±0.004") Over Any 1 m²

Construction

Symmetrical Isotropic Construction in All Axes

Top and Bottom Plates

5 mm (3/16") Thick Stainless Steel, 430 Grade Working Surface

Core Construction

High-Density Plated Steel Honeycomb, 0.26 mm Thick

Damping

Proprietary Optimized Broadband Damping

Side Panels

Rigid Steel Box Section

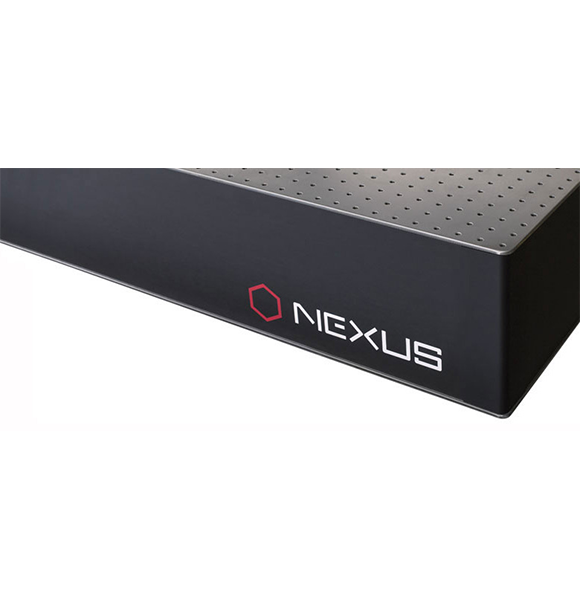

Side Trim Finish

Matte Black Linoleum, 2 mm Inset from Table Surface

Top Surface Finish

Machined Matte Finish

Mounting Holes

Imperial

Metric

Threads and Spacing

1/4"-20 Tapped Holes on 1" Centers

M6 Tapped Holes on 25 mm Centers

Distance from Edge to First Holes

0.5" from Table Edge on all Sides

12.5 mm from Table Edge on all Sides

Maximum Screw Depth

Standard Holes: Total Table Thickness Minus 5 mm (23.5 mm for Outer Border Holes)
Sealed Holes: 25 mm (23.5 mm for Outer Border Holes)

Performance^a

Maximum Dynamic Deflection Coefficient^b

<0.4 x 10^-3

Maximum Relative Tabletop Motion^b

<0.14 nm (5.5 x 10^-9 in.)

Deflection Under Load (Stiffness)^{b, c}

210 mm (8.3") Thick Table: <1.7 μm for a 150 kg (330 lb) Load
310 mm (12.2") Thick Table: <1.2 μm for a 150 kg (330 lb) Load
