Item #

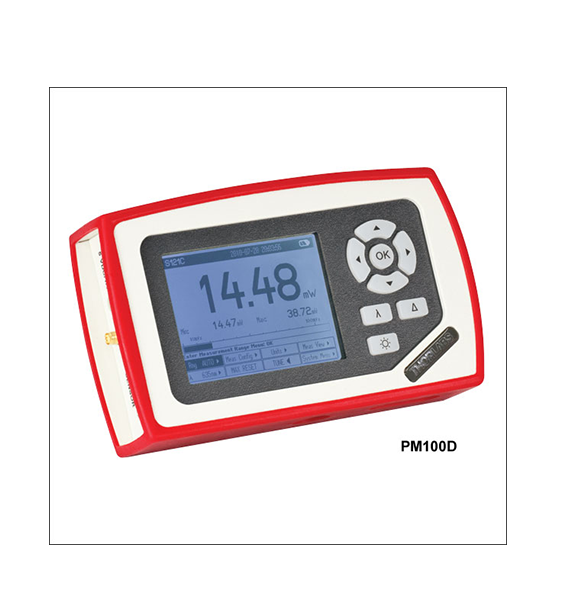

PM100D

Display

Display Type

Graphical LCD 320 x 240 pixels, LED Backlight

Display Screens

Numerical, Bar Graph, Line Graph, Statistics, Simulated Analog Needle

Viewing Area

81.4 mm x 61.0 mm

(3.20” x 2.40”)

Refresh Rate

20 Hz

Audio

1x Speaker

Sensor Interface

Compatible Sensors

All Photodiodes, Thermopiles, and Pyros

See Below for Full Sensor Spaces

Time Constant Correction

<1 s

Ad Converter

16 bit

Trigger (Pulse Measurements, Pyroelectric Sensors)

Adjustable, 0.1 – 100%

Connector

DB9F, Left Side

Sensor Temperature Control

Thermistor

Temperature Range

-10 to 80 ^oC

Analog Outputs

Signal

Amplified Input Signal (Not Corrected)

Voltage Range

0 to 2 V

Accuracy

+- 3%

Bandwidth

Up to 100 kHz, Dependent on Sensor and Settings

Connector

SMA, Left Side

Digital Outputs

Memory

8 GB Removable SD Card

Connector / Interface

Mini USB / USB 2.0

Power

Battery

Li-Polymer, 3.7 V, 1300 mAh

Charger / Dc Input

5 V / 1 A

Dimensions and Mounting

Dimensions (L x W x H)

180 mm x 105 mm x 38 mm

(7.09” x 4.13” x 1.50”)

Weight

<0.5 kg (<1.1 lb)

Mounting Options

Kickstand; 1/4”-20 Post Thread

Operating Temperature

0 to 40 ^oC

Storage Temperature

-40 to 70 ^oC
