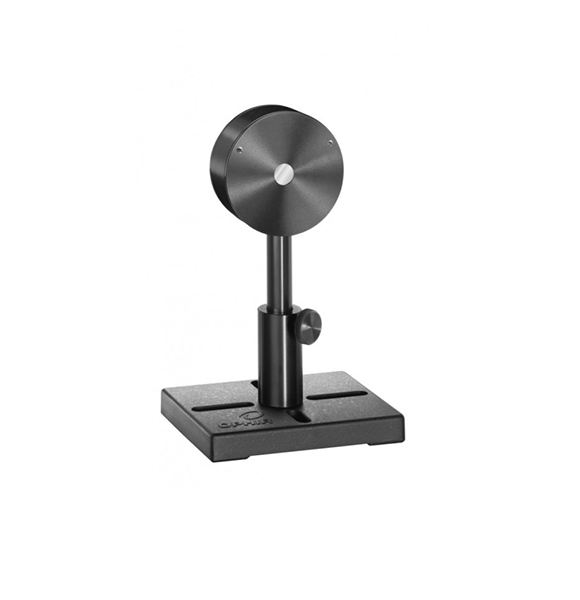

Model

PD10-C

PD10-IR-C

PD10-pJ-C

PD10-IR-pJ-C

Use

Low energies

Infrared

Lowest energies

Infrared, lowest energies

Aperture mm

Ø10

Ø5

Ø10

Ø5

Absorber Type

Si photodiode

Ge photodiode

Si photodiode

Ge photodiode

Spectral Range µm

0.19 - 1.1

0.7 – 1.8

0.2 - 1.1

0.7 - 1.8

Surface Reflectivity % approx.

50

30

30

30

Calibration Accuracy ±%

5

5

5

5

Energy Scales

20µJ to 20nJ

600nJ to 6nJ

200nJ to 200pJ

20nJ to 200pJ

Lowest Measurable Energy nJ

1 at 900nm

1 at 1550nm

0.01 at 900nm

0.03 at 155

0nm

Max Pulse Width ms

0.005

0.005

0.005

0.005

Maximum Pulse Rate pps

20kHz

10kHz

20kHz

10kHz

Noise on Lowest Range nJ

0.05

0.1

0.001

0.01

Additional Error with Frequency %

±1% to 20kHz

±1.5% to

10kHz

±1% to 20kHz

±1.5% to

10kHz

Linearity with Energy for > 10% of full scale

±1.5%

±1.5%

±1.5%

±1.5%

Damage Threshold J/cm2

0.1

0.1

0.1

0.1

Maximum Average Power mW

50 at 800nm

6

0.5

0.2

Maximum Average Power Density W/cm2

50

50

5

5

Maximum Energy vs. Wavelength

Wavelength

Max Energy

Wavelength

Max Energy

Wavelength

Max Energy

Wavelength

Max Energy

<300nm

15µJ

800 - 900nm

600nJ

<300nm

150nJ

800 - 900nm

20nJ

350 - 550nm

8µJ

1000 - 1300nm

200nJ

350 - 550nm

75nJ

1000 - 1300nm

8nJ

>800nm

5µJ

1300 - 1400nm

170nJ

>800nm

50nJ

1300 - 1400nm

7nJ

1480 - 1560nm

150nJ

1480 - 1560nm

6nJ

>1650nm

600nJ

>1650nm

20nJ

Fiber Adapters Available (see page 107)

ST, FC, SMA, SC

ST, FC, SMA, SC

ST, FC, SMA, SC

ST, FC, SMA, SC

Weight kg

0.25

0.25

0.25

0.25

Compliance

CE, UKCA, China

RoHS

CE, UKCA, China RoHS

CE, UKCA, China RoHS

CE, UKCA, China RoHS

Part number

7Z02944

7Z02955

7Z02945

7Z02946
