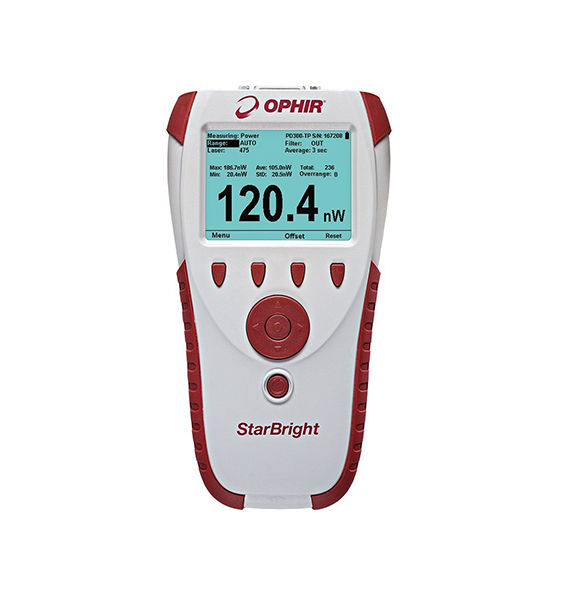

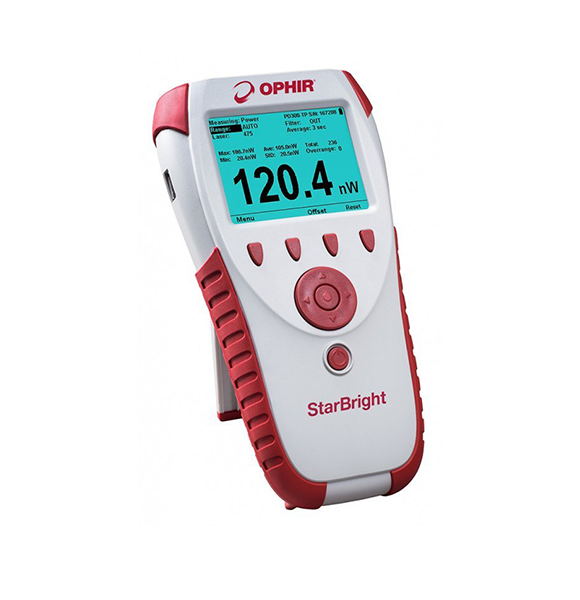

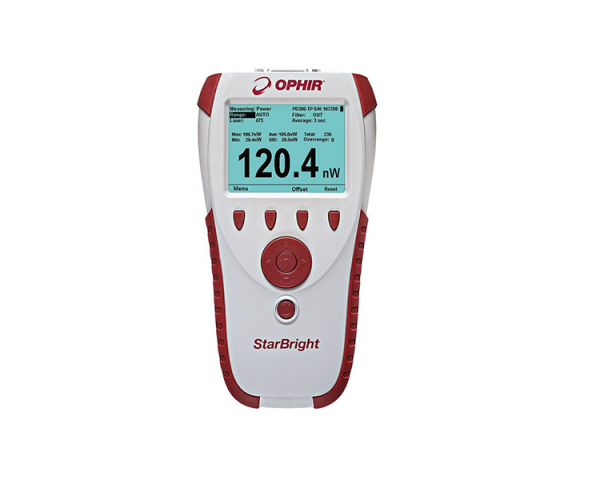

Power Meter

Brilliant color TFT 320 x 240 pixels graphics LCD. Large 16mm digits.

Features

Many screen features including power with multicolor bar graph, energy, average, exposure, frequency, graphs, scaling, special units, and more.

Outputs

USB, RS232 and 1, 2, 5 and 10 volt full scale analog output.

Screen Refresh

15 times/sec

Case

Molded high impact plastic with optimized angle kickstand. Rubberized sides for easy grip and protection against damage.

Size

Folds to a compact 212mm L x 114mm W x 40mm H

Battery

Rechargeable Li-ion batteries with typically 8 hours between charges. The charger can be ordered from your local distributor. The charger also functions as an AC adapter.

Data Handling

Data can be viewed on board or transmitted to PC

On Board: Data stored to USB Drive (Thumb Drive) at rates up to 5000 points/s.

Sensor Features

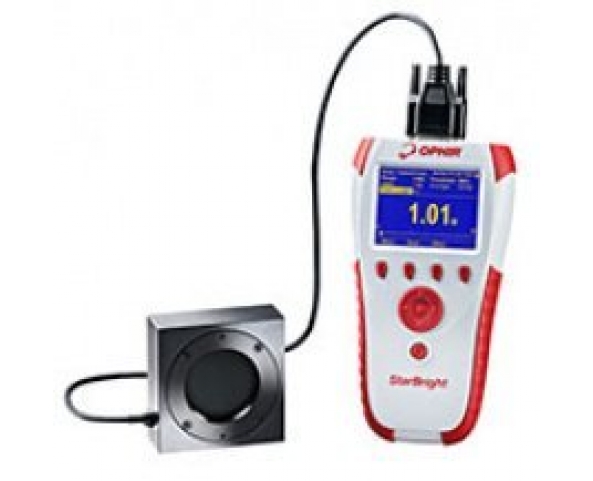

Works with Thermopile, BeamTrack, Pyroelectric (PE-C series) and Photodiode sensors. Works with our PD300RM sensors.

Program Features

Preferred start up configuration can be set by user. User can recalibrate power, energy, response time and zero offset.

Compliance

CE, UKCA, China RoHS
