Sản phẩm

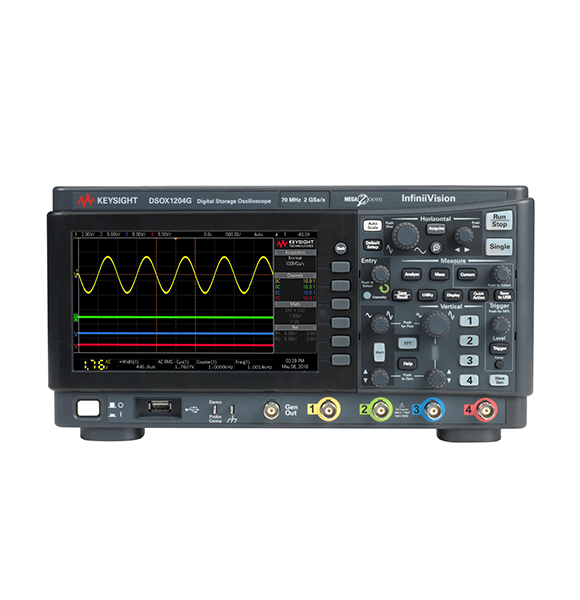

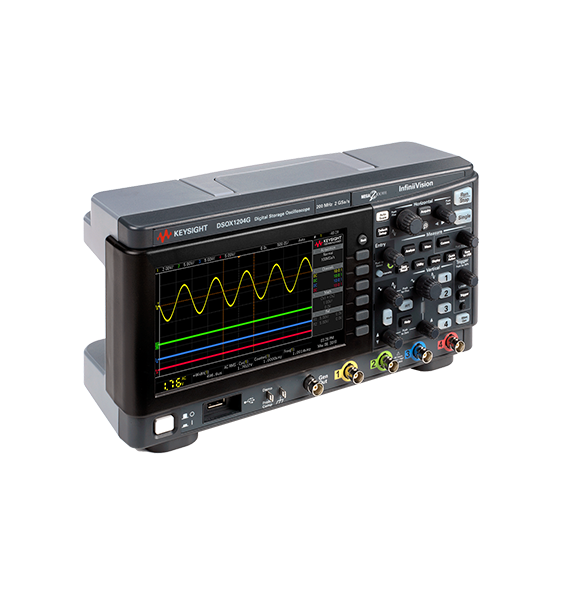

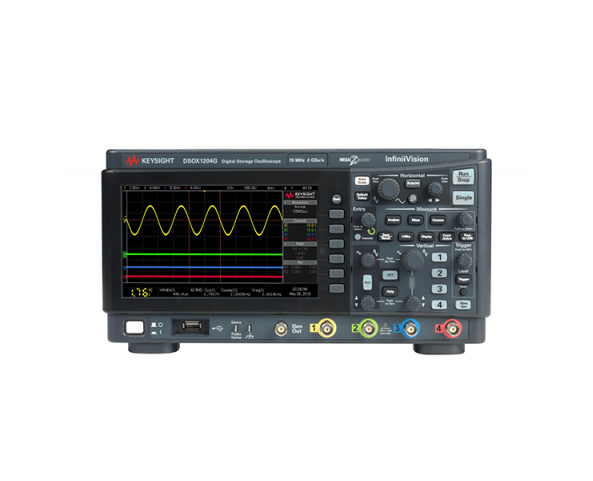

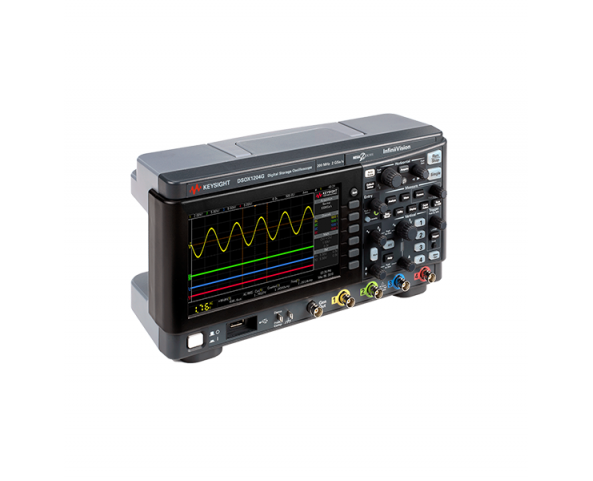

Máy hiện sóng Oscilloscope

  • KSO-Series
  • 524
  • Liên hệ
    • 70/100/200 MHz (100 và 200 MHz yêu cầu tùy chọn bổ sung)
    • Tốc độ lấy mẫu 2 GSa/s
    • 2 triệu điểm
    • Bộ tạo chức năng 20 MHz tích hợp (tiêu chuẩn)
    • Thực hiện các phép đo chuyên nghiệp, bao gồm đồ thị Bode (FRA), kiểm tra mặt nạ, toán học, FFT và phân tích giao thức nối tiếp, tất cả đều tiêu chuẩn
    • Xem thêm chi tiết tín hiệu ở tốc độ cập nhật 200.000 dạng sóng/giây
  • CONTACT
  • Mô tả chi tiết
  • Thông số kỹ thuật
  • Phần mềm & Driver
  • Tài liệu & Catalogue



DSOX1202A

2 channels

DSOX1202G

2 channels

with function generator

DSOX1204A

4 channels

DSOX1204G

4 channels with function generator

Bandwidth

70 MHz (base bandwidth)

100 MHz (D1202BW1A)

200 MHz (D1202BW2A)

70 MHz (base bandwidth)

100 MHz (D1200BW1A)

200 MHz (D1200BW2A)

Analog channels

2

4

External trigger

Front panel input (Displayable as a 3rd digital channel)

Back panel input (not displayed)

Sample rate per channel (max)

2 GSa/s (one- or two-channel operation)

1 GSa/s (if external trigger view is turned on)

2 GSa/s (one- or half-channel1 operation)

1 GSa/s (three- or four-channel operation)

Memory depth per channel (max)

2 M points (one- or two-channel operation)

1 M points (if external trigger view is turned on)

2 M points (one- or half-channel1 operation)

1 M points (three- or four-channel operation)

WaveGen

Not available

20-MHz function generator

Not available

20-MHz function generator

Bode plot

Not available

Standard

Not available

Standard

Waveform update rate

200,000 waveforms per second

Serial protocol analysis

Standard: I²C, SPI, UART/RS-232, CAN, LIN

Segmented memory

Standard

Mask/limit testing

Standard

Built-in training signals

Standard

Integrated digital voltmeter

Standard

Frequency counter

Standard

Waveform math

Add, subtract, multiply, divide, FFT (magnitude and phase), low pass filter

Automatic measurements

14 amplitude, 14 timing, and 4 pulse count measurements

Display

7-inch TFT LCD WVGA

Connectivity

USB 2.0 (host and device), LAN
