8 Powerful Instruments

• Arbitrary Waveform Generator
• Data Logger
• Frequency Response Analyzer
• Logic Analyzer / Pattern Generator
• Oscilloscope / Voltmeter
• PID Controller
• Spectrum Analyzer
• Waveform Generator

Models

M0

• 2 analog inputs, 2 analog outputs and 16 DIO
• USB-C, Wi-Fi, software, and APIs

M1

• All features from M0
• Two-channel programmable power supply

M2

• All features from M0
• Ethernet
• Four-channel programmable power supply

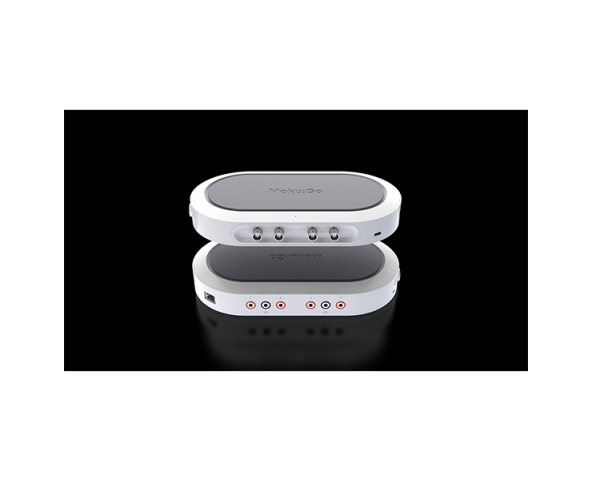

Programmable Power Supplies

2 channel option

• +5 V to -5 V @ 150 mA
• 0 to 16 V @ 150 mA

4 channel option

• +5 V to -5 V @ 150 mA
• 0 to 16 V @ 150 mA
• Dual 0.6 to 5 V @ 1 A

Accessories & options

• All models include relevant accessories: 2 oscilloscope probes, DIO cabling, power adapter, USB-C and Ethernet cable, and power supply cables

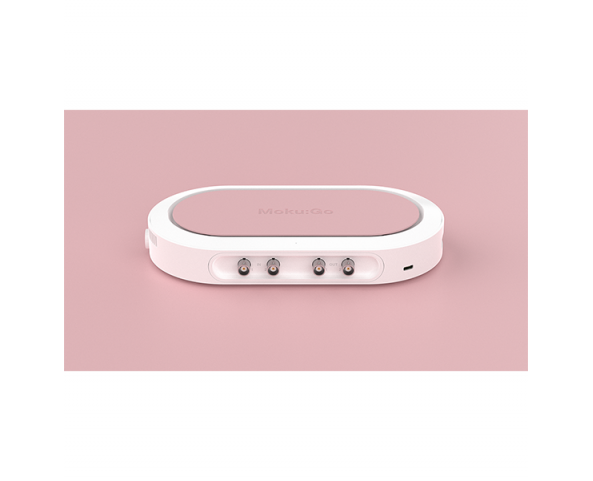

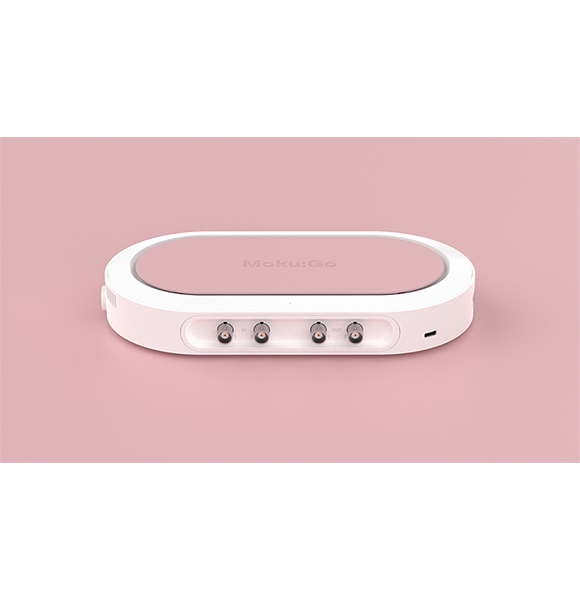

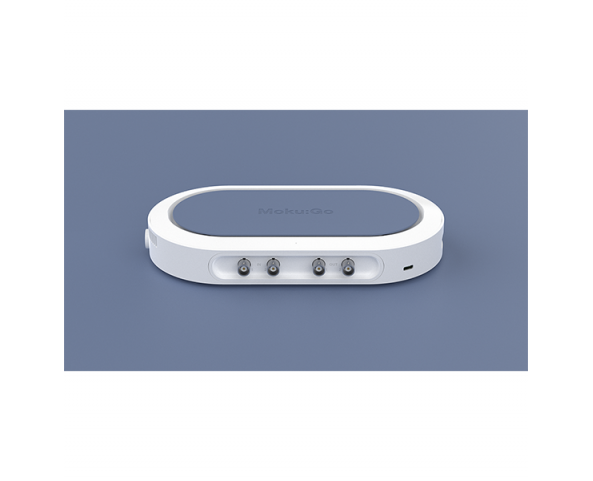

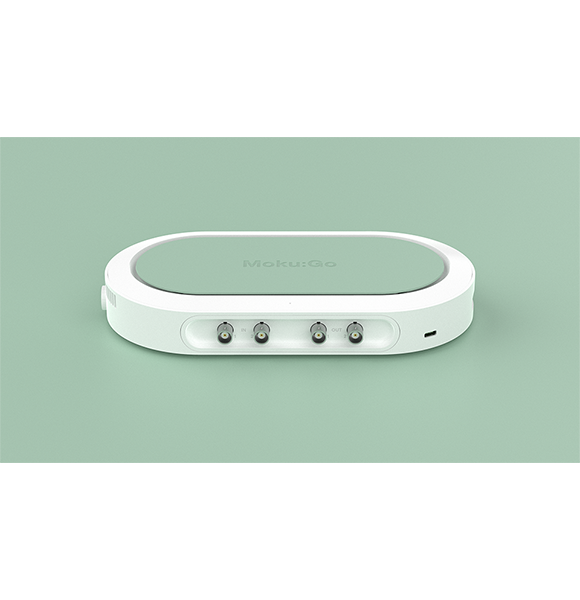

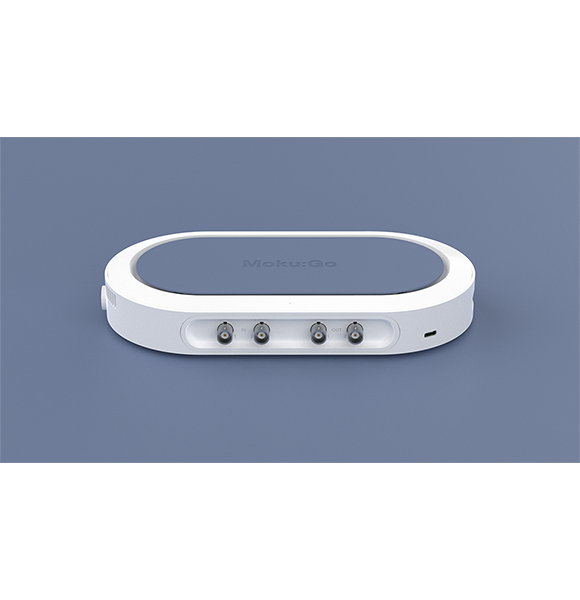

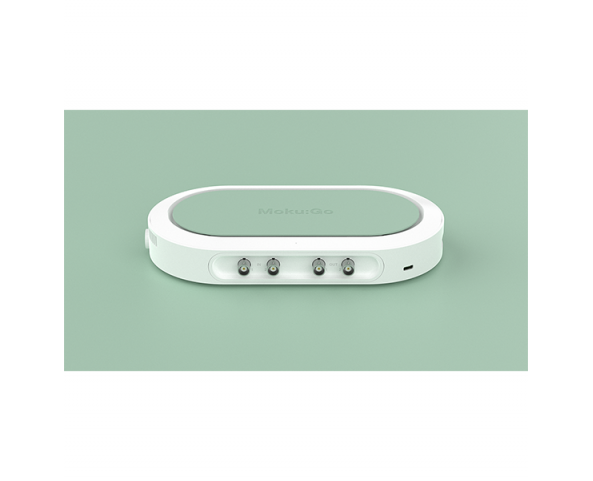

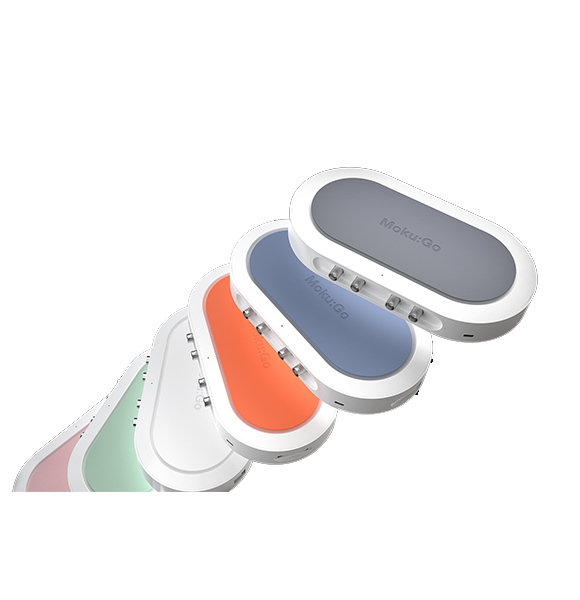

• 6 standard colors, or custom color upgrade

Specifications

Analog Inputs

• Two 12 bit, 125 MSa/s input channels
• 30 MHz analog bandwidth
• AC or DC coupling with 1 MΩ impedance
• Input range up to ± 25 V

Analog Outputs

• Two 12 bit, 125 MSa/s output channels
• 20 MHz analog bandwidth
• ± 5 V maximum output range

Digital I/O

• 16-channel DIO at 62.5 MSa/s
• Support 3.3 V (5 V tolerant) logic level

Programming Environment

• API support for Python and MATLAB
• Windows or macOS
• MathWorks Live Scripting
