1. Optical Specifications

Parameter

Symbol

 Min.

Typ.

Max.

Unit

Notes

Wavelength Range

λ

1200

1650

nm

Responsivity

R1550

0.55

0.65

A/W

P-40A: 1550 nm, SM

R1310

0.55

0.65

P-40A: 1310 nm, SM

Polarization Dependent Response

PDR

0.1

0.2

dB

Optical Input Return Loss

ORL

>30dB

dB

Optical Input Fiber

SMF-28 singlemode fiber

Optical Input Connector

FC or SC style

Overload Peak-Peak Optical Input Power

+13

dBm

P-40A/HP

2. Electrical Characteristics

Parameter

Symbol

 Min.

Typ.

Max.

Unit

Notes

Bandwidth

f_-3dbe

35

40

Ghz

DC - couple version

34

39

AC - couple version

Output Termination

50

ohms

Electrical Return Loss

S₂₂

<-15

-13

dB

0.1 to 10 Ghz

<-10

-8

10Ghz to 20Ghz

<-5

-5

20Ghz to 50Ghz

Output Coupling

Units are ordered as either AC or DC versions

Output Connector

Photodiode Dark Current

I_D

5

20

nA

With photodiode reverse bias of 5V (as mesured at 25°C)

Photodiode Bias Voltage

+2.5

+3

+3.5

V

P-40A/HP

Photodiode Current Monitor Range

I_PD

0

3.2

mA

Photodiode Supplied Voltage Range

V_PD

0

+5

V

Photodiode Temperature Range

15

35

°C

Temperature Tolerances

±0.1

°C

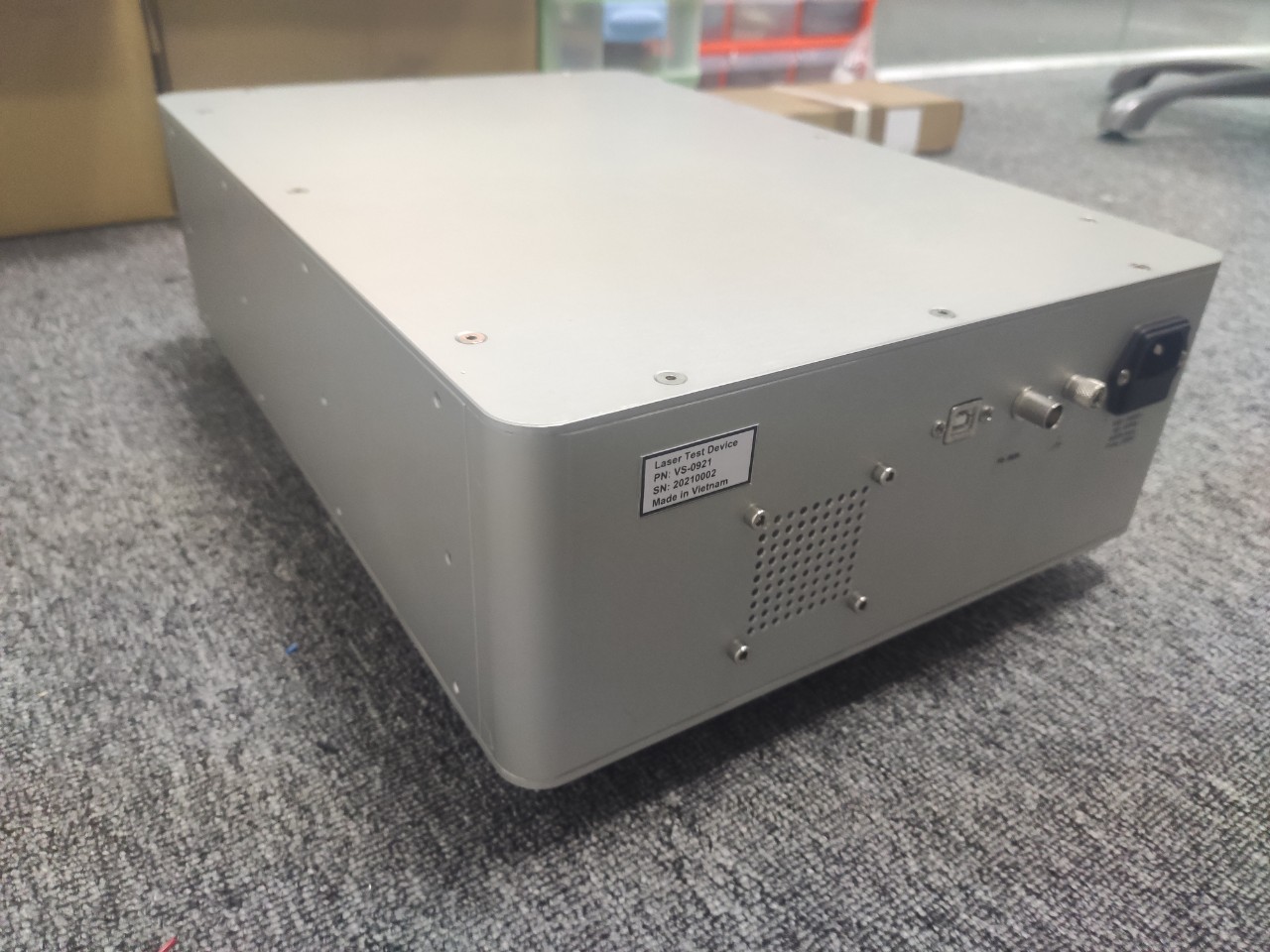

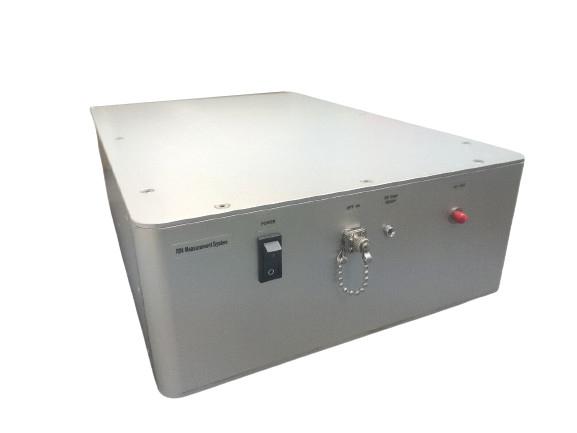

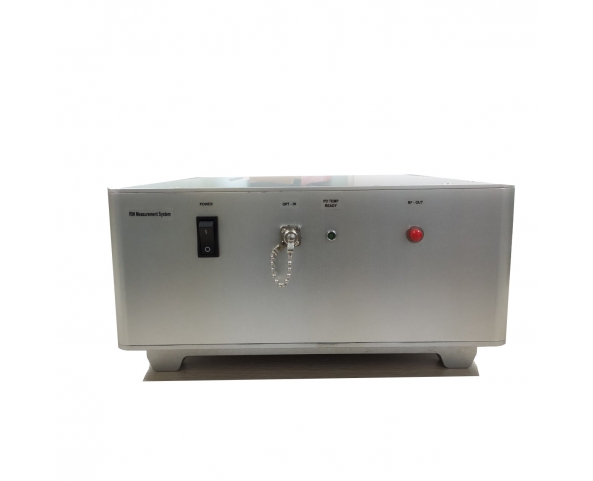

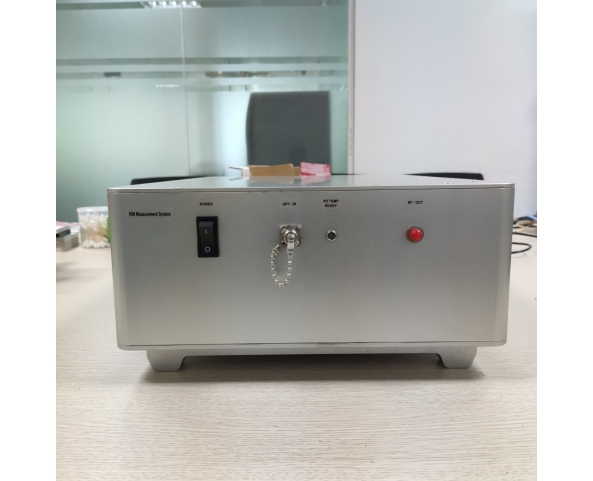

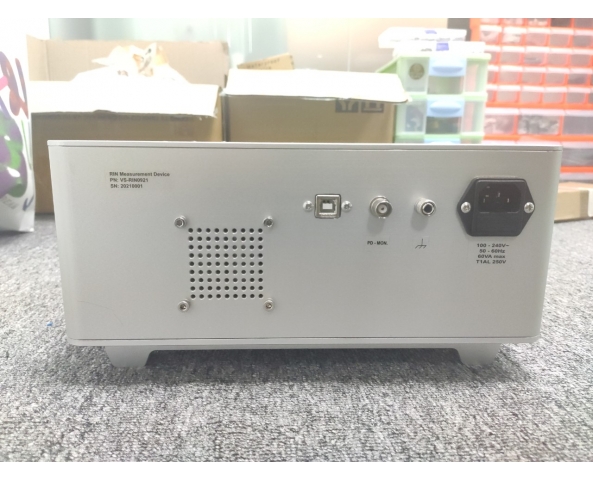

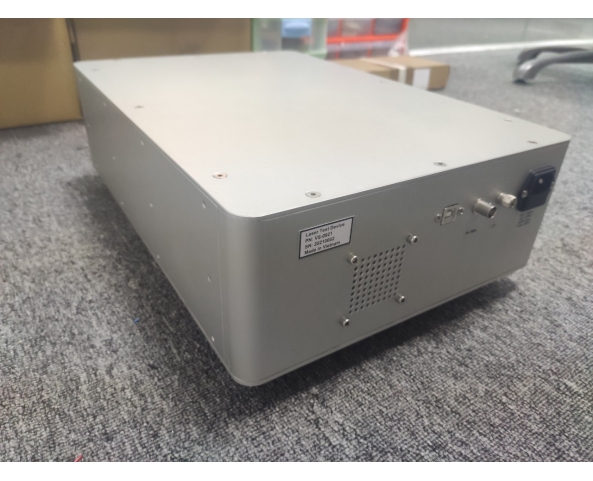

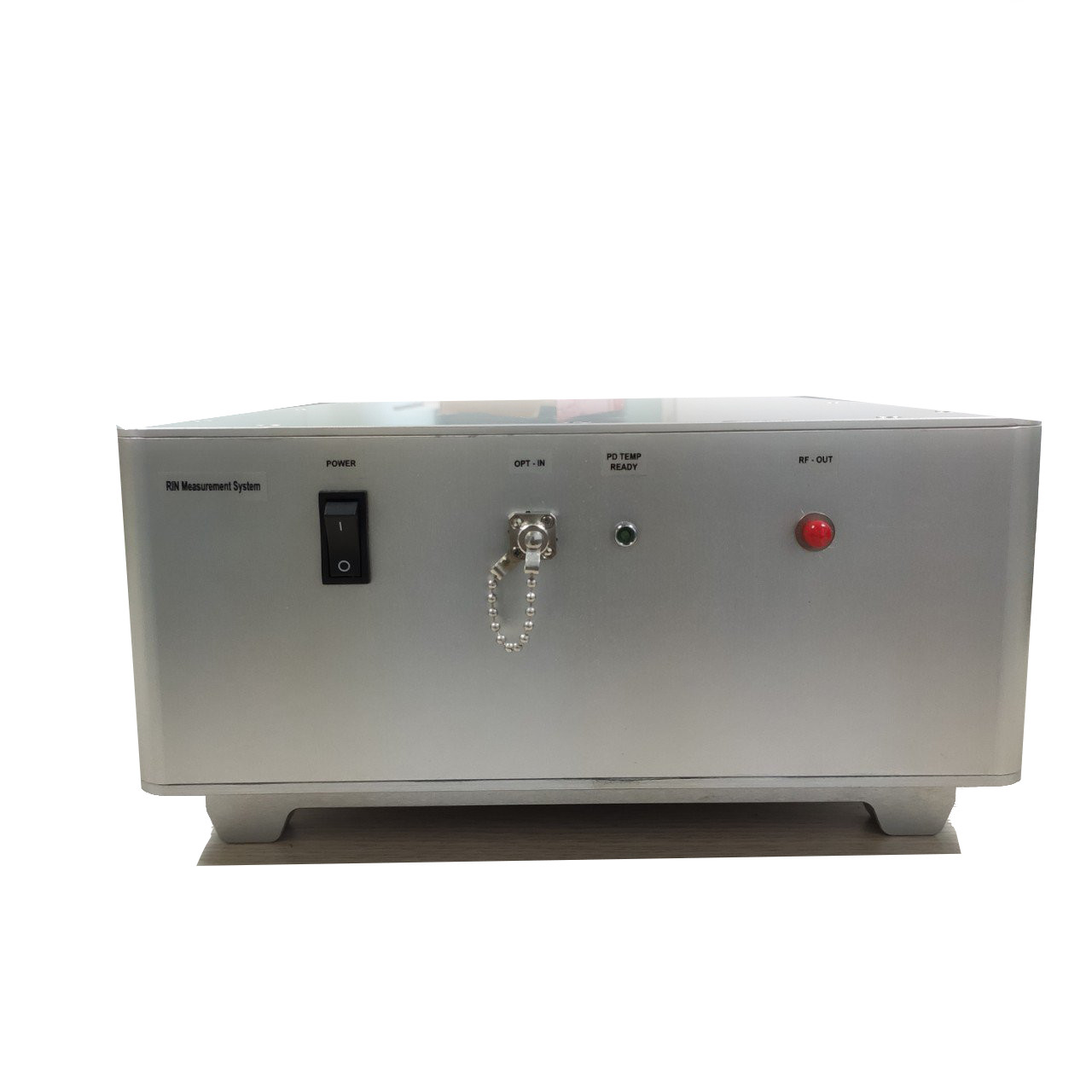

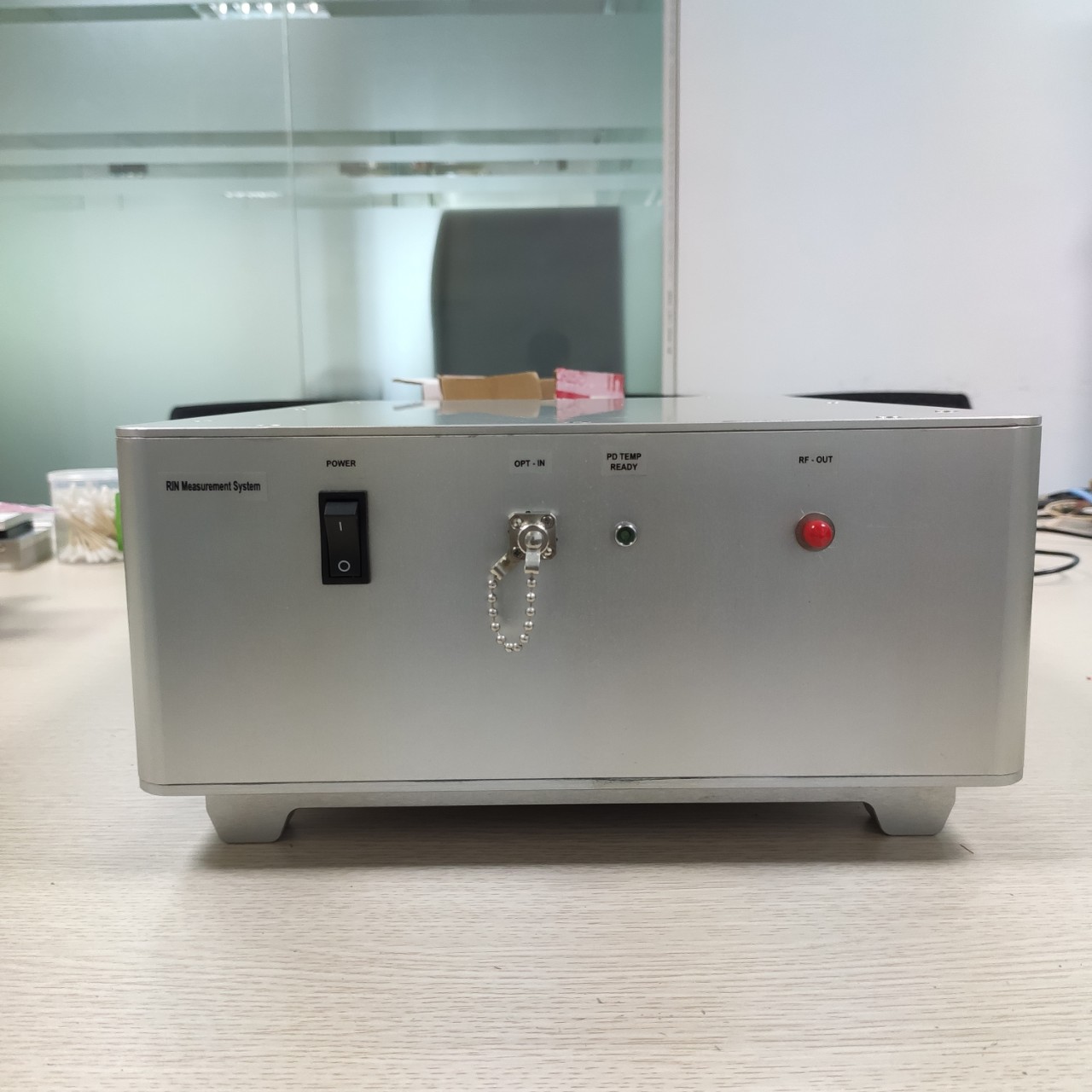

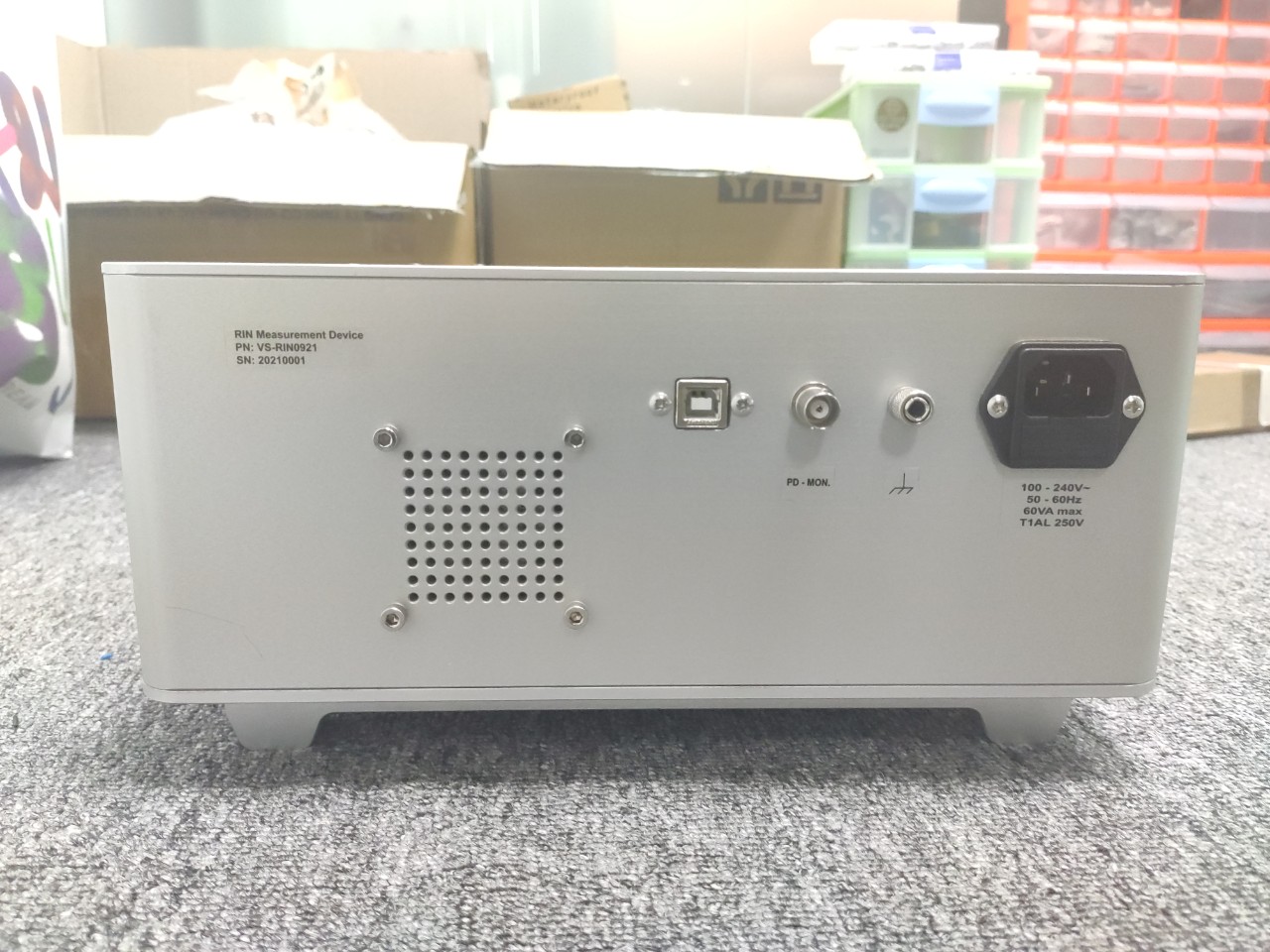

3. Mechanical Characteristics

Parameter

Notes

Box Parameter

430mm x 300mm x 148.5mm

Weight

7 kg
