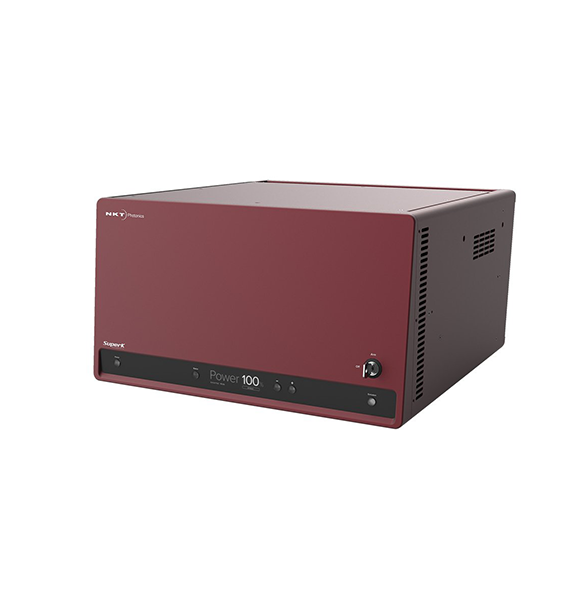

SUPERK FIANIUM SUPERCONTINUUM LASERS

Mã sản phẩm:
SPK FIANIUM
Lượt xem:
583
Giá:
Liên hệ
CONTACT

Mô tả chi tiết
Thông số kỹ thuật
Phần mềm & Driver
Tài liệu & Catalogue

OPTICAL

Model	FIU-6	FIU-15	FIR-20
Repetition rate	78 MHz	78 MHz	78 MHz
Variable repetition rate (optional)	0.15-78 MHz	0.15-78 MHz	0.15-78 MHz
Total visible power (350-850 nm)	≈ 0.6 W	≈ 1.5 W	≈ 2.0 W
Total power	≈ 2.2 W	≈ 5.5 W	≈ 6.5 W
Power stability ¹	±0.5 %	±0.5 %	±0.5 %
Cut-in wavelength (>0.1 mW/nm)	390 nm	410 nm	475 nm
Polarization	Random	Random	Random
Beam quality ²	M² < 1.1	M² < 1.1 ³	M² < 1.1
Beam diameter	≈ 1 mm @ 532 nm ≈ 2 mm @ 1100 nm ≈ 3 mm @ 2000 nm
Beam pointing accuracy ⁴	< 1 mrad

^{2) Measured relative to the mechanical axis running through the center of the collimator

3) For > 450 nm}

ELECTRICAL / ENVIRONMENTAL / MECHANICAL

Computer interface	USB 2.0/RS-232/Ethernet
Operation voltage	100-240 VAC 50/60 Hz
Power consumption	<100 W (<120W with pulse picker)
Door interlock connector ¹	2-pin LEMO
External bus interface ²	15-pin sub-D
System cooling	Air-cooled
Operation temperature	+18^o to +30^oC
Storage temperature	-10^o to +55^oC
Dimensions (WxHxL)	440 x 251 x 400 mm
Weight	18 kg (19 with pulse picker)

^{1) The SuperK FIANIUM is a Class 4 laser and is required to be connected to a door interlock/circuit

2) External communication and power supply port for accessories}
