MEASUREMENT PARAMETERS

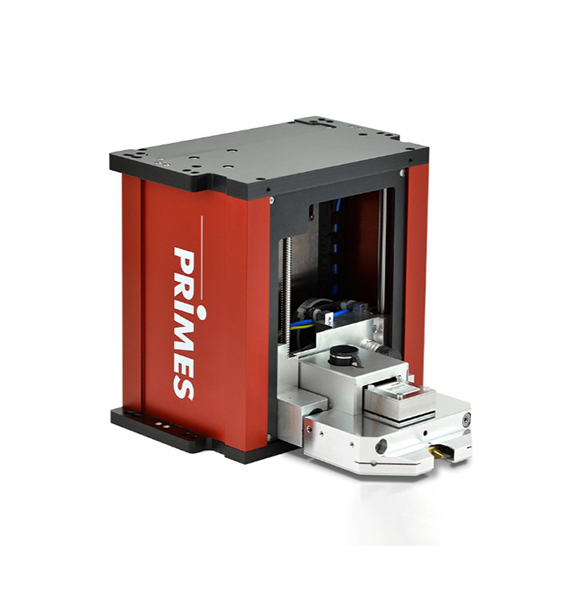

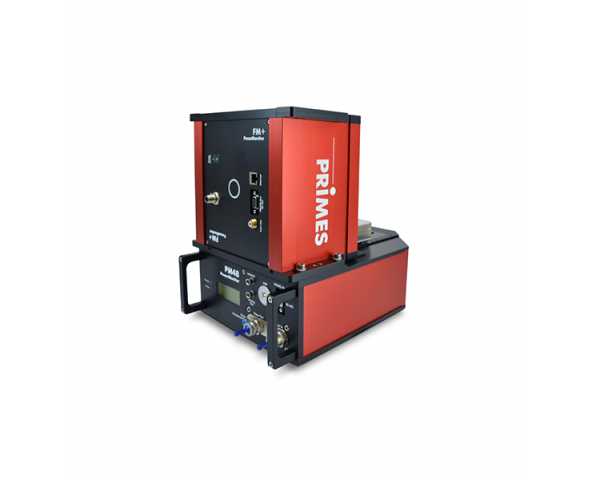

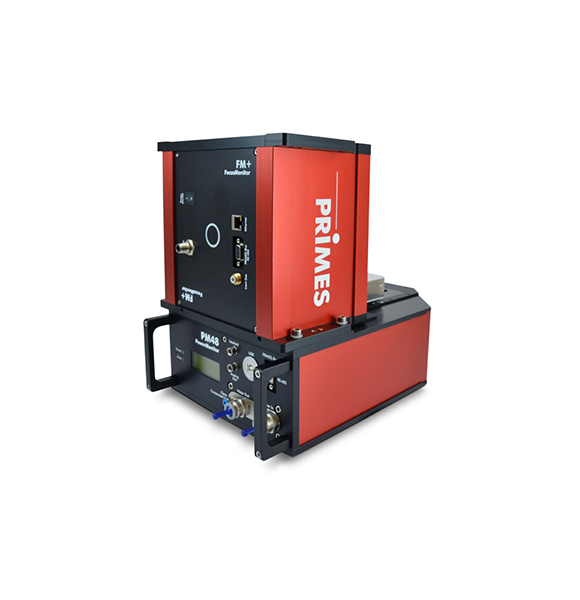

FM+

FM+ HPD

Power range

30 – 25 000 W

100 – 25 000 W

Wavelength range

0.4 – 1.6 µm and 9 – 12 µm

1.0 - 1.1 µm

(other wavelength ranges on request)

Beam dimension, typ.

100 – 3 000 µm (up to 5 000 µm optionally)

100 – 1 200 µm

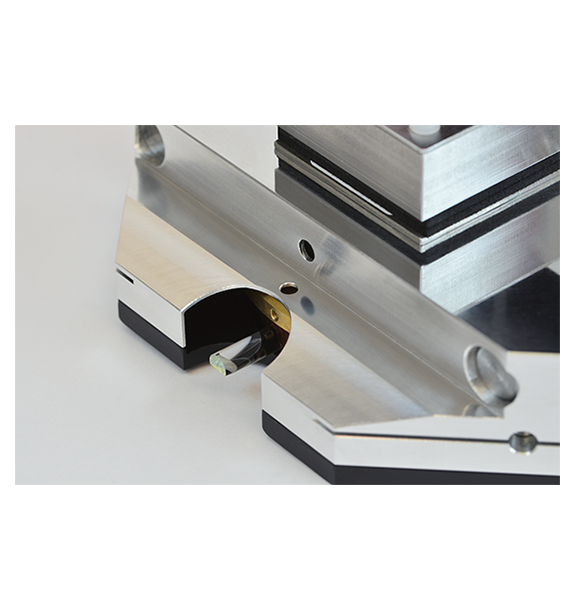

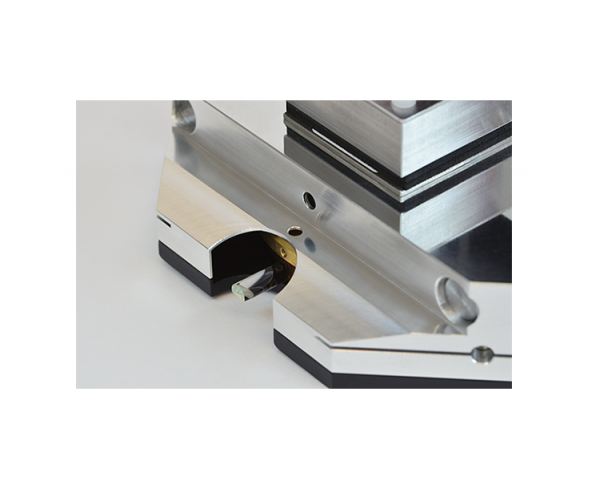

Max. power density at different measuring tips

CO2 laser (10.6 µm): 30 MW/cm2

Nd:YAG-Laser (1 000 – 1 100 nm): 10 MW/cm2

VIS-Laser (515 – 550 nm): 5 MW/cm2

Dioden-Laser (400 – 1 000 nm): 1 MW/cm2

NIR laser: 50 MW/cm2

DETERMINED PARAMETERS

Focus position x, y, z

yes

yes

Focus radius x, y

yes

yes

Beam propagation ratio M2

yes

yes

Measured rayleigh length, typ.

28 mm

28 mm

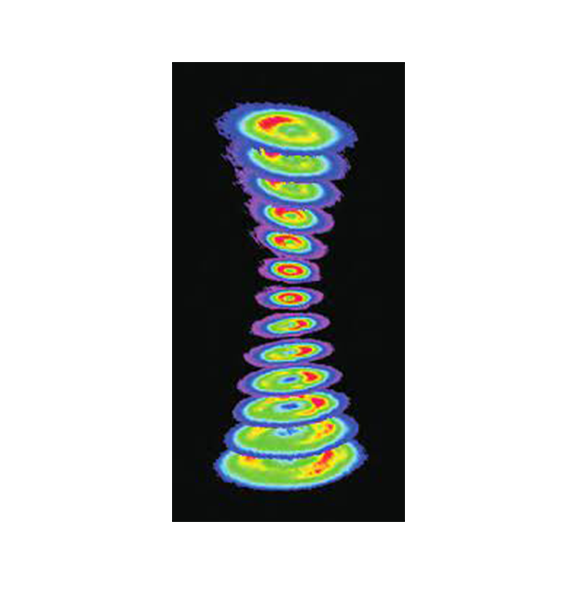

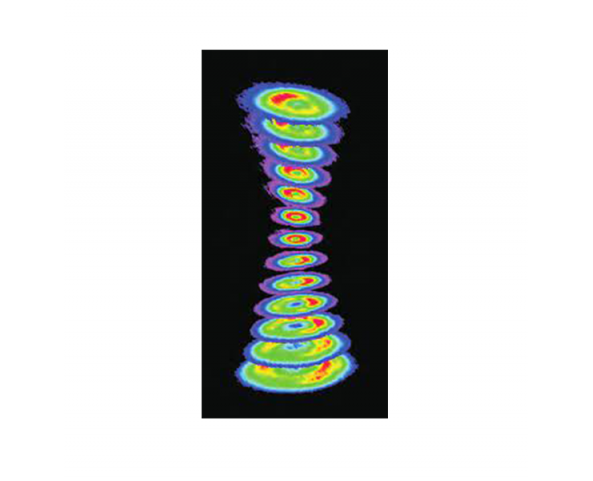

Power density distribution

2D, 3D

2D, 3D

Measurement time per plane dependent on measured parameters (like resolution, rotation speed, position of measuring window)

5 s - 40 s

5 s - 40 s

Linescan

optional

optional

DEVICE PARAMETERS

Working range x-y

8 x 8 mm (12 x 12 mm or 24 x 12 mm optional)

8 x 8 mm (12 x 12 mm or 24 x 12 mm optional)

Working range z

120 mm

120 mm

Measurement window sizes

0.1 x 0.1 – 8 x 8 mm (at 64 pixel resolution)

0.1 x 0.1 – 8 x 8 mm (at 64 pixel resolution)

Resolution

32 x 32 px – 1 024 x 1 024 px

32 x 32 px – 1 024 x 1 024 px

Rotation speed

1 875, 3 750, 7 500 min-1

1 875, 3 750, 7 500 min-1

SUPPLY DATA

Power supply

24 V DC ± 5 %, max. 3.5 A

24 V DC ± 5 %, max. 3.5 A

Protective gas (water and oil free)

Helium, nitrogen or argon

Helium, nitrogen or argon

Max. pressure

typ. 0.5 bar (option)

typ. 0.5 bar (option)

COMMUNICATION

Interfaces

Ethernet, RS485

Ethernet, RS485

Trigger-delay port

optional

optional

DIMENSIONS AND WEIGHT

Dimensions (L x W x H)

280 x 242 x 218 mm

280 x 242 x 218 mm

Weight (approx.)

8.5 kg

8.5 kg

ENVIRONMENTAL CONDITIONS

Operating temperature range

15 – 40 °C

15 – 40 °C

Storage temperature range

5 – 50 °C

5 – 50 °C

Reference temperature

22 °C

22 °C

Permissible relative humidity (non-condensing)

10 – 80 %

10 – 80 %
