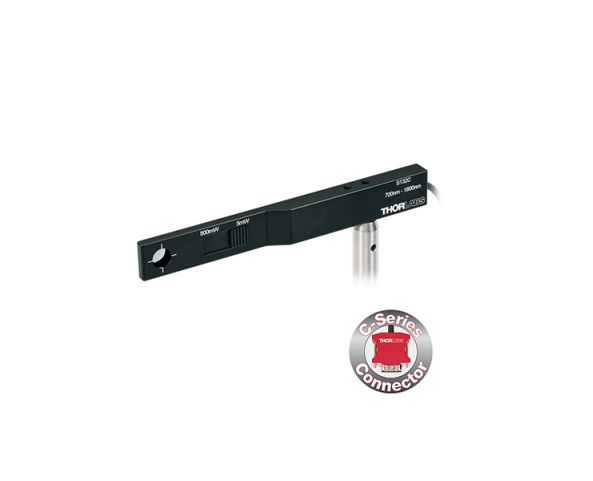

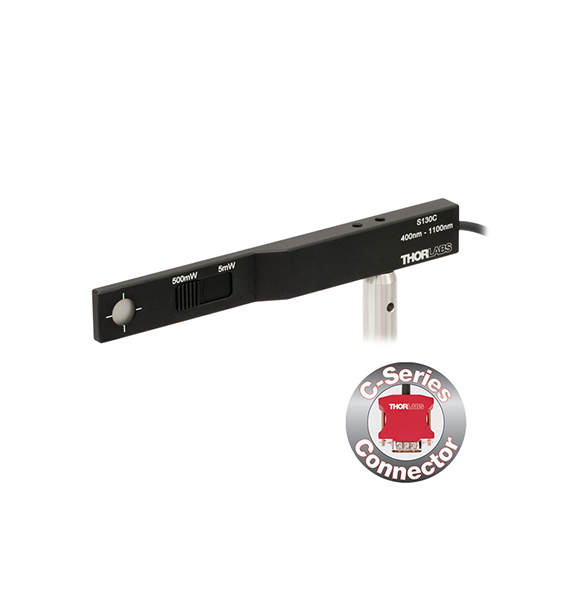

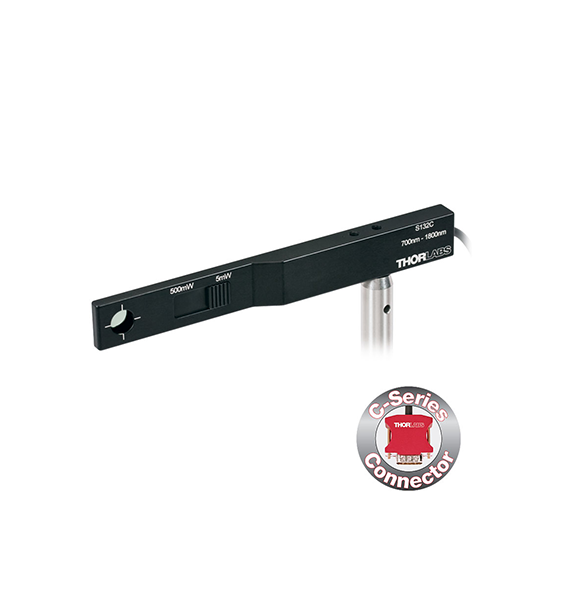

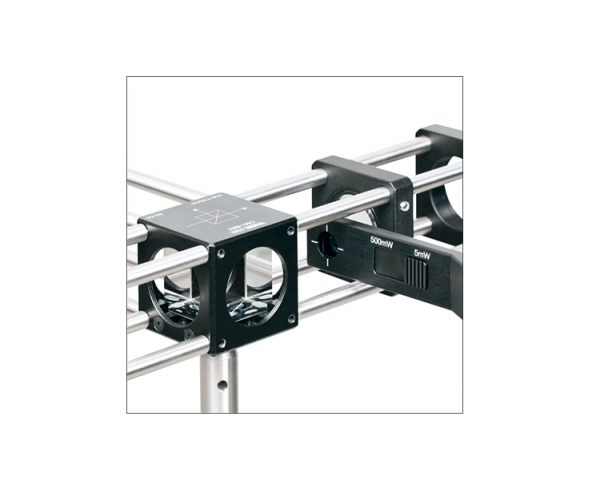

Slim Photodiode Power Sensors

Item #^a	S130VC	S130C	S132C^b
Aperture Size	Ø9.5 mm
Wavelength Range	200 - 1100 nm	400 - 1100 nm	700 - 1800 nm^c
Power Range (with filter)	500 pW - 0.5 mW^d (Up to 50 mW)^d	500 pW - 5 mW (Up to 500 mW)	5 nW - 5 mW (Up to 500 mW)
Detector Type	Si Photodiode (UV Extended)	Si Photodiode	Ge Photodiode
Linearity	±0.5%
Resolution	100 pW^e		1 nW^f
Measurement Uncertainty^g	±3% (440 - 980 nm) ±5% (280 - 439 nm) ±7% (200 - 279 nm, 981 - 1100 nm)	±3% (440 - 980 nm) ±5% (400 - 439 nm) ±7% (981 - 1100 nm)	±5%
Coating/Diffuser	Reflective ND (OD1.5)^d	Reflective ND (OD2)ⁱ	Absorptive ND (Schott NG9/KG3)^c
Housing Dimensions	150 mm x 19 mm x 10 mm; 5 mm Thickness on Sensor Side
Active Detector Area	9.7 mm x 9.7 mm
Cable Length	1.5 m
Mounting Thread	Separate 8-32 and M4 Taps, Posts Not Included

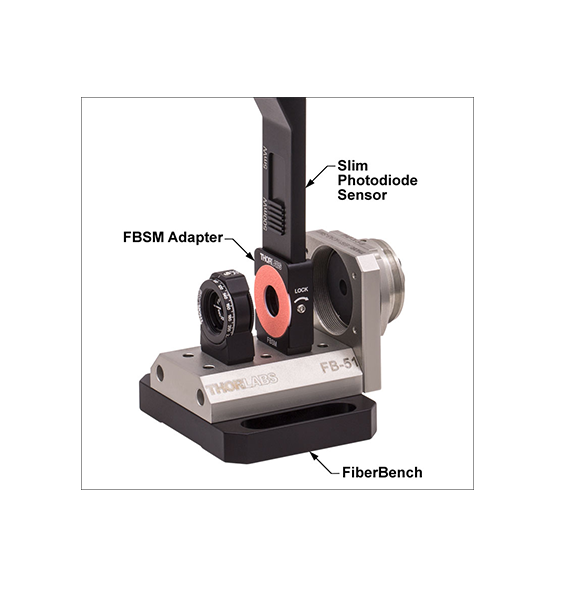

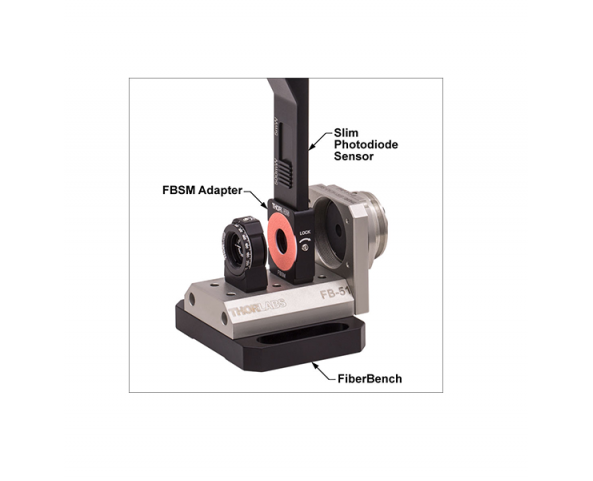

Adapters (Not Included)	SM1A29: Add SM1 Thread and Viewing Target to Aperture Fiber Adapters Compatible with SM1A29 Adapter: S120-FC, S120-APC, S120-SMA, S120-ST, S120-LC, and S120-SC FBSM: Integrate Sensor into FiberBench Setups
Compatible Consoles	PM400, PM100D, PM100A, and PM320E
Compatible Interfaces	PM101, PM101A, PM101R, PM101U, PM103, PM103A, PM103U, and PM100USB

For complete specifications, please see the Specs tab.
The minimum measurable power for Germanium photodiodes can vary due to large fluctuations in the sensor's dark current, which is dependent on wavelength and temperature. This is particularly true at the edges of the sensor's operating range where the responsivity is lower.
For the S132C, these specifications are valid for devices with serial numbers 1203xxx or higher. Older versions had a reflective ND diffuser (OD1), which would decrease the wavelength range from 700 nm to 1800 nm to 1200 nm to 1800 nm. For additional information, please contact technical support.
For the S130VC, these specifications are valid for devices with serial numbers 1203xxx or higher. Older versions had an optical power range of 5 nW to 5 mW (50 nW to 50 mW with filter) and a reflective ND diffuser (OD1). For additional information, please contact technical support.
Measured with PM100D console in low bandwidth setting, without filter.
Measured with PM100D console in low bandwidth setting at 1550 nm, without filter.
Beam Diameter > 1 mm.
All sensor responsivities shown in these plots were calibrated to a NIST-traceable source with measurements taken in 5 nm intervals.
For the S130C, these specifications are valid for devices with serial numbers 1203xxx or higher. Older versions had an absorptive ND diffuser (Schott NG9). For additional information, please contact technical support.
